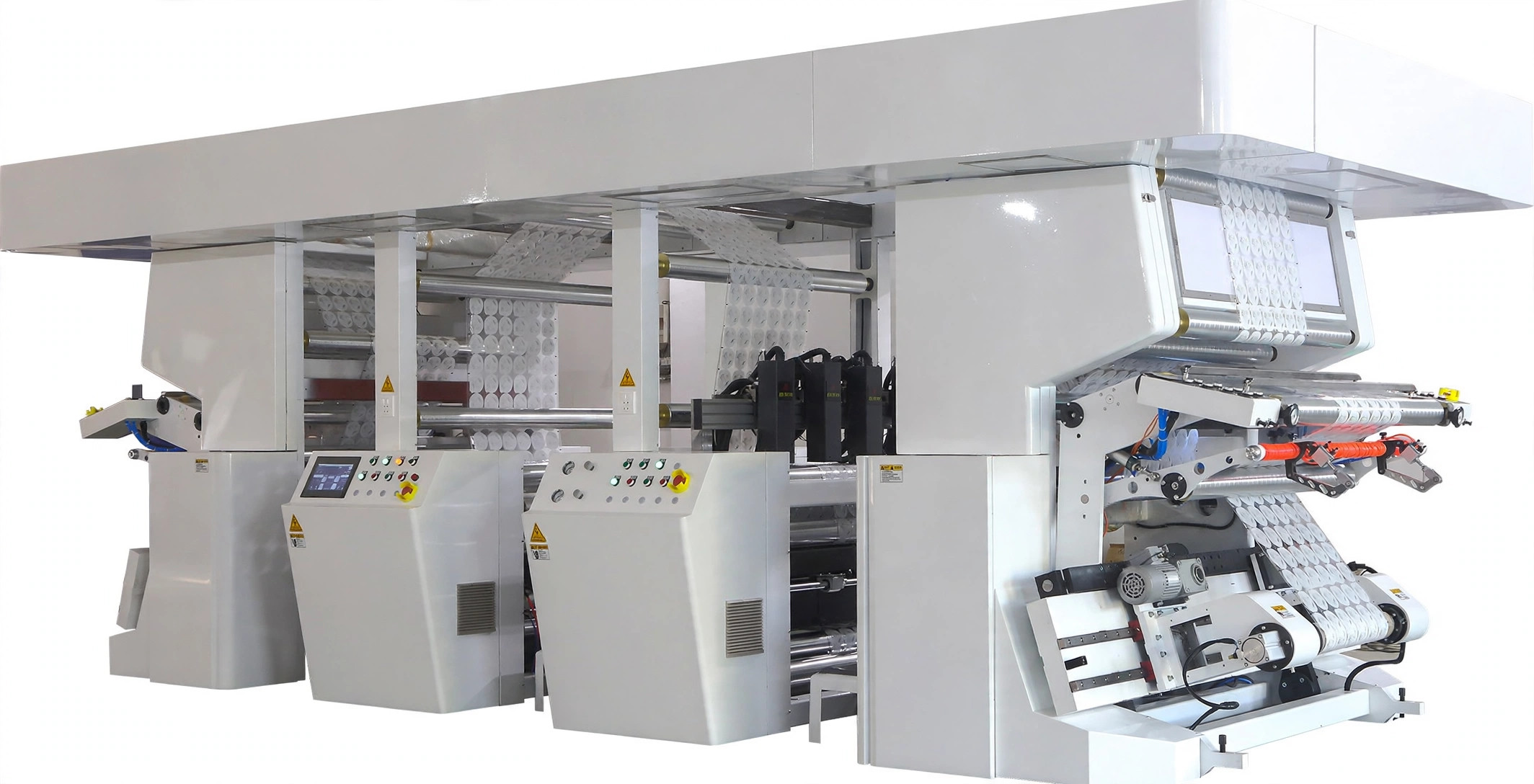

Inkjet Coding & Rewinding Machines

Variable data inkjet printing, inspection and rewinding in one line: spray codes on both sides of the material while checking its quality.

Models

JML-PM&JP1300II

Inkjet Printing and Inspection and Rewinding Machine

Specification	Value
Jumbo roll width	300–1300mm
Unwind diameter	φ800mm
Core dia. of mother roll	3"/6" paper core
Rewind diameter	φ800mm
Core dia. of daughter roll	3"/6" paper core
Mechanical speed	300m/min
Edge guiding range	140mm
Power	24kW
Power supply	380V/50HZ
Weight	≈7500kg
Overall dimension	L 6400×W 2780×H 2400mm

JML-PM1050

Printing and Rewinding Machine

Specification	Value
Jumbo roll width	300–1000mm
Unwind diameter	φ800mm
Core dia. of mother roll	3"/6" paper core
Rewind diameter	φ600mm
Core dia. of daughter roll	3"/6" paper core
Mechanical speed	300m/min
Edge guiding range	140mm
Power	18kW
Power supply	380V/50HZ
Weight	≈7500kg
Overall dimension	L 4400×W 2780×H 2400mm

Key Features

Siemens bus control, remote diagnosis
The servo motor of the whole machine runs
CCD deviation correction system
Positive and reverse control of equipment
Precision tension control system
Shaftless unwinding, hydraulic lifting of raw materials
It is possible to simultaneously spray code and inspect the quality of both sides of the material

Purpose

Surface inkjet printing and inspection of various flexible packaging materials, electronic, optical, film, foil, pressure sensitive adhesive labels, and other roll-like materials. Inspection for defects in printing film material.

Optional Devices

Optional printing defect detection system and inkjet system; optional edge cutting device.
