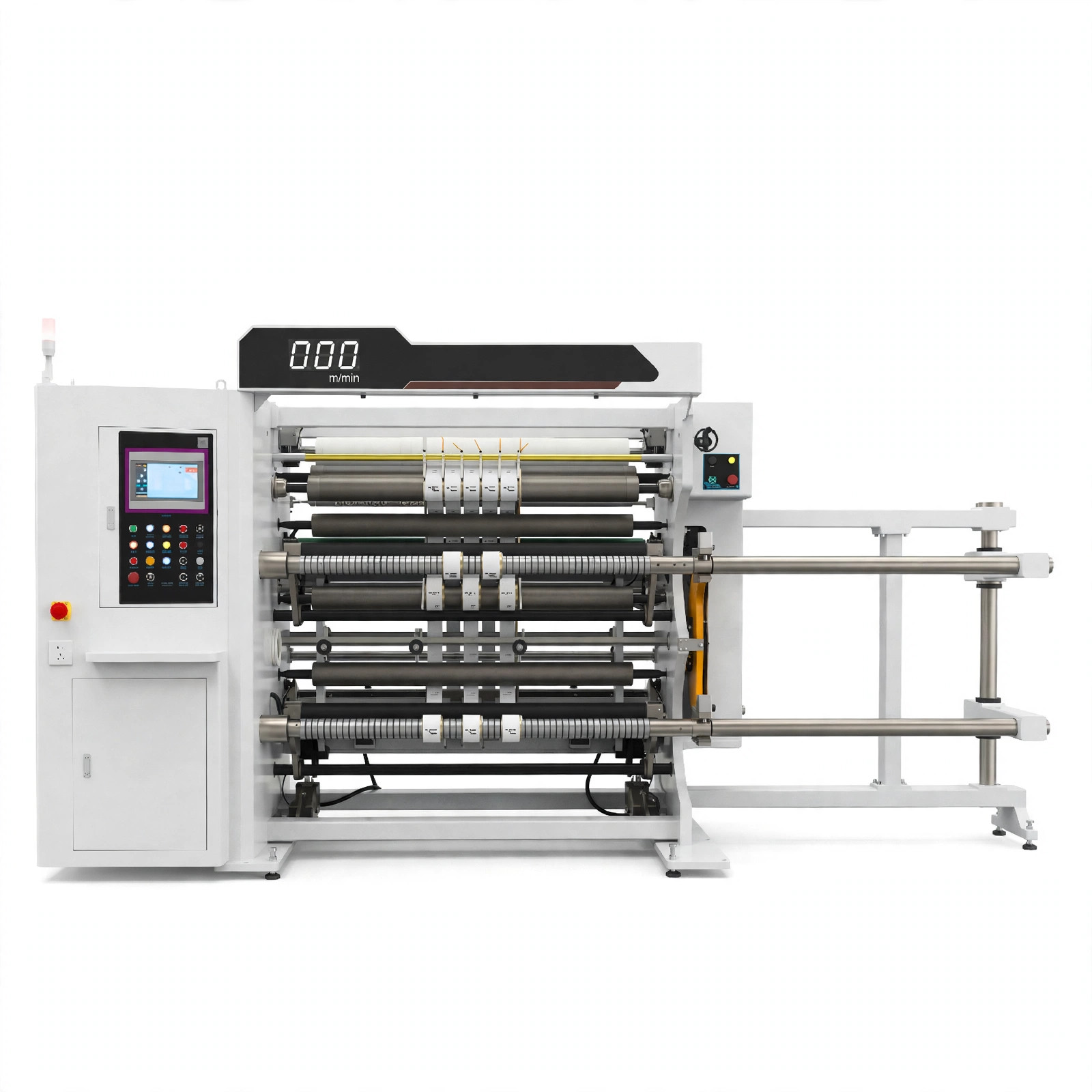

Slitting Machines
Servo-driven high-speed slitting for flexible packaging materials, electronics, optics, film, foil and pressure-sensitive labels. ST1300, SP1300, SF1300 and FQ series.
Models
JML-ST1300
| Specification | Value |
|---|---|
| Max. web width | 1300mm |
| Unwind inner diameter | 76mm (3"), optional 152mm (6") |
| Unwind diameter | 800mm |
| Rewind diameter | 600mm |
| Min. slit width | 30mm |
| Mechanical speed | 600m/min |
| Power | ≈22kW |
| Power supply | 380V/50HZ |
| Weight | ≈3800kg |
| Overall dimension | 4100×2100×2100mm |
JML-SP1300
| Specification | Value |
|---|---|
| Jumbo roll width | ≤1300mm |
| Unwind diameter | φ800mm |
| Core dia. of mother roll | 3"/6" paper core |
| Rewind diameter | φ600mm |
| Core dia. of daughter roll | 3"/6" paper core |
| Width range of daughter rolls | 20–700mm |
| Mechanical speed | 600m/min |
| Slitting speed | 10–450m/min |
| Edge guiding range | 140mm |
| Power | 26kW |
| Power supply | 380V/50HZ |
| Weight | ≈3800kg |
| Overall dimension | L 4100×W 2100×H 2100mm |
JML-SF1300
| Specification | Value |
|---|---|
| Jumbo roll width | 20–1300mm |
| Unwind diameter | φ800mm |
| Core dia. of mother roll | 3"/6" paper core |
| Rewind diameter | φ650mm |
| Core dia. of daughter roll | 3"/6" paper core |
| Mechanical speed | 600m/min |
| Power | 20kW |
| Power supply | 380V/50HZ |
| Weight | 3800kg |
| Overall dimension | L 3700×W 1750×H 2100mm |
JML-FQ700
| Specification | Value |
|---|---|
| Jumbo roll width | ≤700mm |
| Unwind diameter | φ600mm |
| Core dia. of mother roll | 3"/6" paper core |
| Rewind diameter | φ600mm |
| Core dia. of daughter roll | 3"/6" paper core |
| Width range of daughter rolls | 20–700mm |
| Mechanical speed | 300m/min |
| Slitting speed | 10–300m/min |
| Edge guiding range | 140mm |
| Power | 6kW |
| Power supply | 380V/50HZ |
| Weight | ≈1600kg |
| Overall dimension | L 1750×W 1600×H 1500mm |
JML-FQ600
| Specification | Value |
|---|---|
| Jumbo roll width | ≤600mm |
| Unwind diameter | φ600mm |
| Core dia. of mother roll | 3"/6" paper core |
| Rewind diameter | φ600mm |
| Core dia. of daughter roll | 3"/6" paper core |
| Width range of daughter rolls | 20–600mm |
| Mechanical speed | 200m/min |
| Slitting speed | 10–200m/min |
| Edge guiding range | 140mm |
| Power | 5kW |
| Power supply | 380V/50HZ |
| Weight | ≈1500kg |
| Overall dimension | L 1400×W 1600×H 1500mm |
Key Features
- Siemens bus control, remote diagnosis (ST/SP/SF); complete machine PLC control, man-machine interface operation, remote diagnosis (FQ)
- The servo motor of the whole machine runs
- Precision tension control system
- Shaftless unwinding, hydraulic lifting of raw materials (ST/SP/SF); cantilever design for easy operation (FQ)
- Special friction shafts are provided; high finished roll quality under high speed (ST1300)
- Three servomotors drive system providing accurate control (ST1300); the winding is independently controlled by a servo motor (SP/SF)
- All FSL-1 series are equipped with vacuum type trim disposal (ST/SP/SF)
- Specially designed ejectors with powerful ventilators remove the slit edge of web (ST/SP/SF)
Purpose
Slitting of various flexible packaging materials, electronics, optics, film rolls, foil rolls, pressure sensitive adhesive labels, and other roll-like materials. ST1300 is specially designed for plastic films of variable thicknesses, low tension demand or tension strictness, and also suits cellophane, PET, OPP, CPP, PE, PS, PVC, paper roll, and printed films.
Optional Devices
Circular knife or flat knife cutting can be optionally configured; optional partial transverse and longitudinal tear line device (SF1300); optional multiple winding methods (SP1300); mill roll lifter can be equipped as optional (ST1300).
