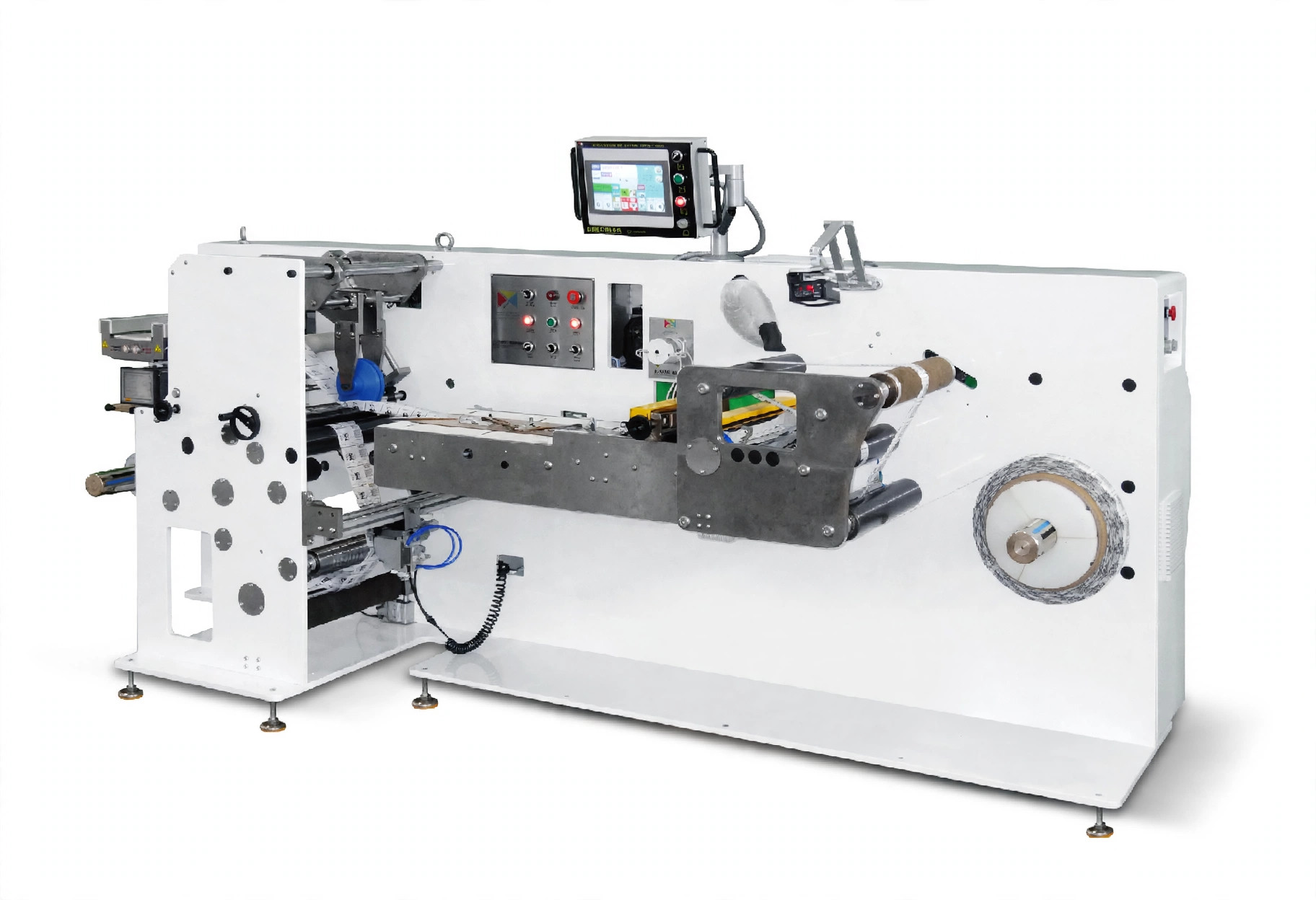

Shrink Sleeve Glue Sealing Machines
For PET, PVC and OPS shrink sleeve labels: tubular forming and middle bonding at high speed, with mold-less and non-stop models. WMHZ, SM and GSHZ series.
Models
JML-WMHZ-500II-A
PET/PVC Shrink Sleeve Glue Sealing Machine (Mold-less Type)
| Specification | Value |
|---|---|
| Jumbo roll width | 60–720mm |
| Unwind diameter | φ500mm |
| Core dia. of mother roll | 3" paper core |
| Rewind diameter | φ700mm |
| Core dia. of daughter roll | 3" paper core |
| Width range of daughter rolls | 30–350mm |
| Mechanical speed | 450m/min |
| Edge guiding range | 140mm |
| Power | 9kW |
| Power supply | 380V/50HZ |
| Weight | ≈1600kg |
| Overall dimension | L 3000×W 1650×H 1350mm |
JML-WMHZ-500II-B
PET/PVC Shrink Sleeve Glue Sealing Machine (Mold-less Type)
| Specification | Value |
|---|---|
| Jumbo roll width | 60–520mm |
| Unwind diameter | φ500mm |
| Core dia. of mother roll | 3" paper core |
| Rewind diameter | φ700mm |
| Core dia. of daughter roll | 3" paper core |
| Width range of daughter rolls | 30–250mm |
| Mechanical speed | 450m/min |
| Edge guiding range | 140mm |
| Power | 9kW |
| Power supply | 380V/50HZ |
| Weight | ≈1500kg |
| Overall dimension | L 2500×W 1500×H 1350mm |
JML-SM250
PET/PVC Shrink Sleeve Glue Sealing Machine (Mold-less Type)
| Specification | Value |
|---|---|
| Jumbo roll width | 60–520mm |
| Unwind diameter | φ500mm |
| Core dia. of mother roll | 3" paper core |
| Rewind diameter | φ700mm |
| Core dia. of daughter roll | 3" paper core |
| Width range of daughter rolls | 30–250mm |
| Mechanical speed | 450m/min or 600m/min |
| Edge guiding range | ±25mm |
| Power | ≈9kW |
| Power supply | 380V/50HZ |
| Weight | ≈1500kg |
| Overall dimension | L 3100×W 1250×H 1650mm |
JML-SM400
PET/PVC Shrink Sleeve Glue Sealing Machine (Mold-less Type)
| Specification | Value |
|---|---|
| Jumbo roll width | 60–820mm |
| Unwind diameter | φ600mm |
| Core dia. of mother roll | 3" paper core |
| Rewind diameter | φ1000mm |
| Core dia. of daughter roll | 3" paper core |
| Width range of daughter rolls | 30–400mm |
| Mechanical speed | 450m/min or 600m/min |
| Edge guiding range | ±25mm |
| Power | ≈10kW |
| Power supply | 380V/50HZ |
| Weight | ≈1700kg |
| Overall dimension | L 3550×W 1550×H 1650mm |
JML-SM250LINE
PET/PVC Shrink Sleeve Glue Sealing Machine (Mold-less Type)
| Specification | Value |
|---|---|
| Jumbo roll width | 60–520mm |
| Unwind diameter | φ500mm |
| Core dia. of mother roll | 3" paper core |
| Rewind diameter | φ700mm |
| Core dia. of daughter roll | 3" paper core |
| Width range of daughter rolls | 30–250mm |
| Mechanical speed | 450m/min or 600m/min |
| Edge guiding range | ±25mm |
| Power | ≈9kW |
| Power supply | 380V/50HZ |
| Weight | ≈1800kg |
| Overall dimension | L 3700×W 1250×H 1650mm |
LINE version: with horizontal and vertical test-line positioning and drilling.
JML-SM400LINE
PET/PVC Shrink Sleeve Glue Sealing Machine (Mold-less Type)
| Specification | Value |
|---|---|
| Jumbo roll width | 60–820mm |
| Unwind diameter | φ600mm |
| Core dia. of mother roll | 3" paper core |
| Rewind diameter | φ1000mm |
| Core dia. of daughter roll | 3" paper core |
| Width range of daughter rolls | 30–400mm |
| Mechanical speed | 450m/min or 600m/min |
| Edge guiding range | ±25mm |
| Power | ≈10kW |
| Power supply | 380V/50HZ |
| Weight | ≈2000kg |
| Overall dimension | L 3900×W 1550×H 1650mm |
LINE version: with horizontal and vertical test-line positioning and drilling.
JML-WMHZ-500IV
PET/PVC Shrink Sleeve Glue Sealing Machine (Mold-less Type)
| Specification | Value |
|---|---|
| Jumbo roll width | 40–520mm |
| Unwind diameter | φ500mm |
| Core dia. of mother roll | 3" paper core |
| Rewind diameter | φ700mm |
| Core dia. of daughter roll | 3" paper core |
| Width range of daughter rolls | 20–250mm |
| Mechanical speed | 500m/min |
| Edge guiding range | 140mm |
| Power | 9kW |
| Power supply | 380V/50HZ |
| Weight | ≈1900kg |
| Overall dimension | L 3000×W 1500×H 1350mm |
JML-GSHZ-300A
PET/PVC Shrink Sleeve Glue Sealing Machine (High Speed Gluing)
| Specification | Value |
|---|---|
| Jumbo roll width | 85–620mm |
| Unwind diameter | ≤φ500mm |
| Core dia. of mother roll | 3" paper core |
| Rewind diameter | ≤φ700mm |
| Core dia. of daughter roll | 3" paper core |
| Width range of daughter rolls | 40–300mm |
| Mechanical speed | 450m/min |
| Edge guiding range | 140mm |
| Power | 5kW |
| Power supply | 380V/50HZ |
| Weight | ≈1000kg |
| Overall dimension | L 3500×W 1480×H 1700mm |
JML-WMHZ-500I
Non-stop Shrink Sleeve Glue Sealing Machine (Mold-less Type)
| Specification | Value |
|---|---|
| Jumbo roll width | 110–620mm |
| Unwind diameter | φ500mm |
| Core dia. of mother roll | 3" paper core |
| Rewind diameter | φ700mm |
| Core dia. of daughter roll | 3" paper core |
| Width range of daughter rolls | 50–300mm |
| Mechanical speed | 600m/min |
| Edge guiding range | 140mm |
| Power | 22kW |
| Power supply | 380V/50HZ |
| Weight | ≈5500kg |
| Overall dimension | L 5800×W 1980×H 1750mm |
Non-stop operation: the complete machine runs without shutdown for roll changes, reducing downtime and improving productivity, and reducing dependence on operators.
Key Features
- Siemens bus control, remote diagnosis
- The servo motor of the whole machine runs
- Precision tension control system
- Automatic shutdown of surplus materials
- Automatic control of glue flow and automatic adjustment of servo motor speed changes
- Equipped with adhesive rear fan to accelerate solvent drying
- Equipped with synchronous strobe light
- Equipped with automatic rewinding and layering device
- Compact design based on ergonomics, fully cantilever design, easy to operate, saving time and materials
Purpose
Various shrink film labels such as PVC, OPS, PET and other materials are tubular shaped and bonded in the middle.
Optional Devices
Optional automatic width measuring device; optional fully automatic size control; optional edge cutting device; optional raw material lifting device.
