Inspection & Slitting Machines
Inspection and slitting in one pass: surface defect inspection of printed film, foil and labels, then precision slitting and rewinding by a single operator.
Models

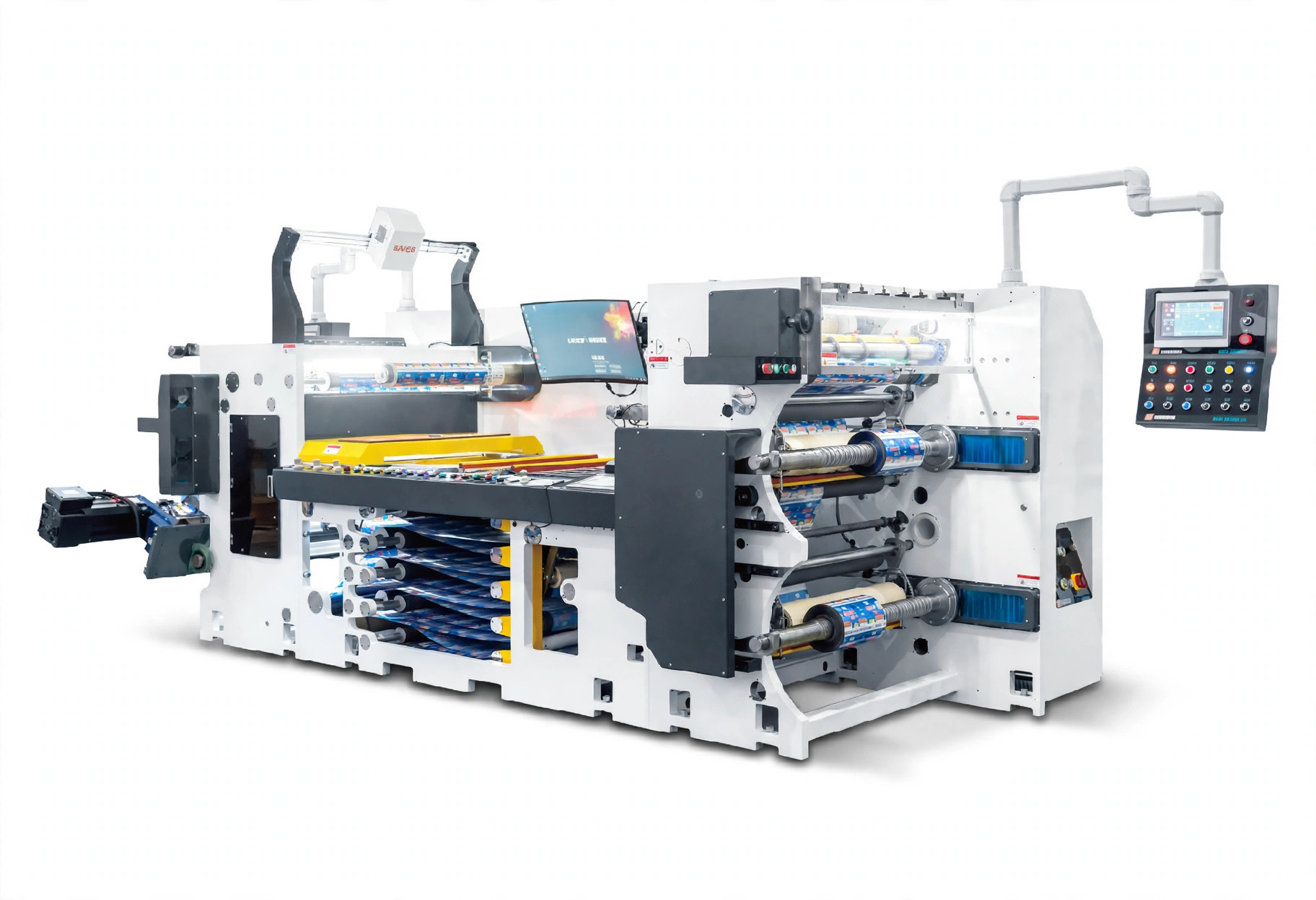

JML-JP&FQ1300
Inspection & Slitting Machine
| Specification | Value |
|---|---|
| Jumbo roll width | 300–1300mm |
| Unwind diameter | φ800mm |
| Core dia. of mother roll | 3"/6" paper core |
| Rewind diameter | φ600mm |
| Core dia. of daughter roll | 3"/6" paper core |
| Width range of daughter rolls | 20–1300mm |
| Mechanical speed | 450m/min |
| Slitting speed | 10–450m/min |
| Edge guiding range | 140mm |
| Power | 20kW |
| Power supply | 380V/50HZ |
| Weight | ≈8000kg |
| Overall dimension | L 4680×W 2150×H 2250mm |
Key Features
- Siemens bus control, remote diagnosis
- The servo motor of the whole machine runs
- CCD deviation correction system
- Configure defective material take-up
- Positive and reverse control of equipment
- Precision tension control system
- Shaftless unwinding, hydraulic lifting of raw materials
- Configure two winding methods: contact winding and proximity winding
- Efficient material defect detection, which can simultaneously detect the front and back sides of materials
- Simultaneous detection, slitting, and rewinding can be achieved by one operator
Purpose
Surface inspection of various flexible packaging materials, electronic, optical, film, foil, pressure sensitive adhesive labels, and other roll-like materials. Inspection for defects in printing film material.
Optional Devices
Optional printing defect detection system; circular knife or flat knife cutting can be optionally configured.
