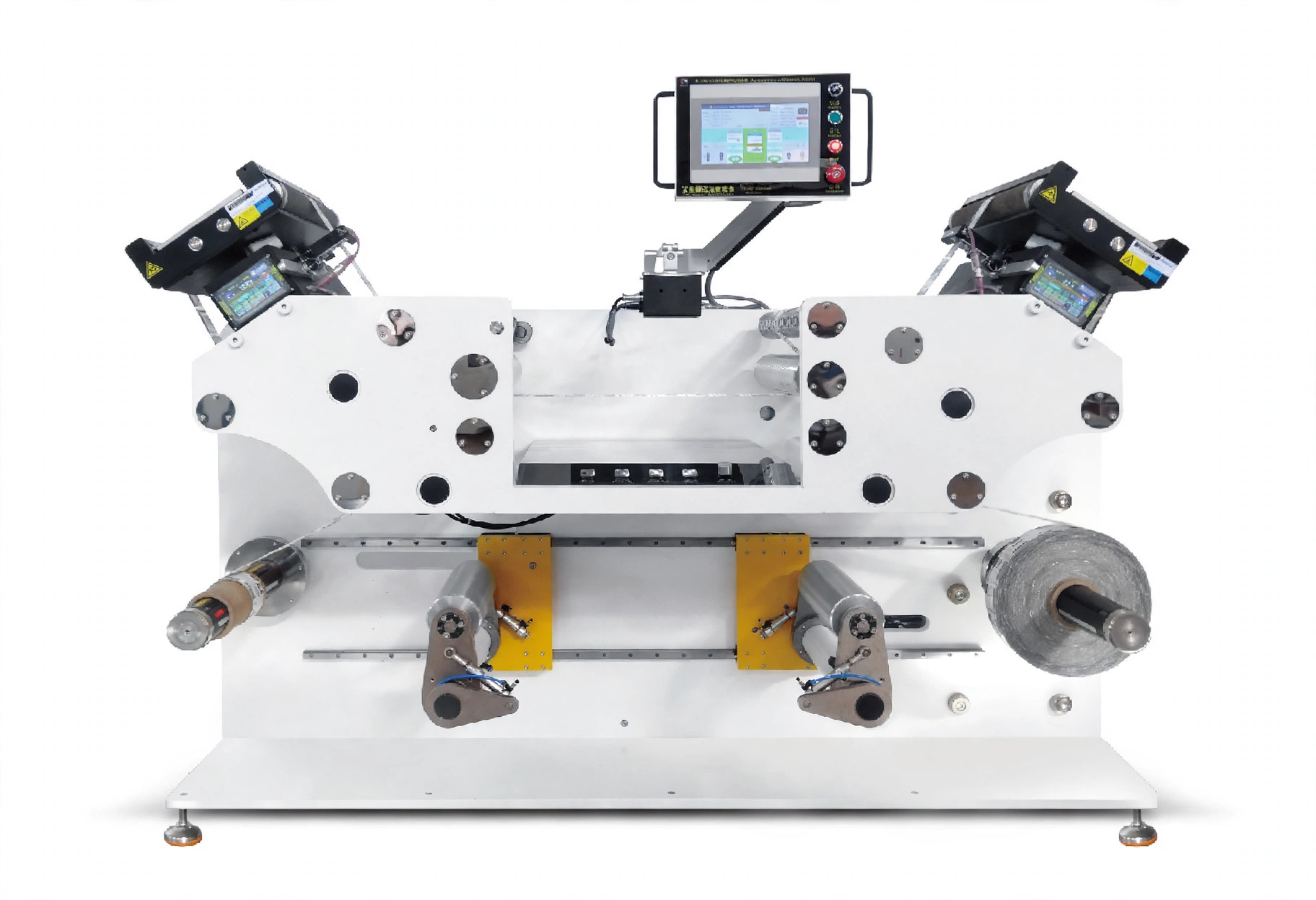

Inspection & Rewinding Machines
Inspection and rewinding for shrink sleeve labels and roll materials, including air-shaft doctoring models that check adhesion and print quality, plus high-speed rewinding and automatic tension inspection models.
Models
JML-GSJP-300A
Inspection and Rewinding Machine
| Specification | Value |
|---|---|
| Jumbo roll width | 20–300mm |
| Unwind diameter | φ700mm |
| Core dia. of mother roll | 3" paper core |
| Rewind diameter | φ700mm |
| Core dia. of daughter roll | 3" paper core |
| Mechanical speed | 450m/min |
| Power | 5kW |
| Power supply | 380V/50HZ |
| Weight | ≈450kg |
| Overall dimension | L 3150×W 2030×H 1700mm |
JML-JP&FJ-500II-A
Sleeve Doctoring and Rewinding Machine
| Specification | Value |
|---|---|
| Jumbo roll width | 20–600mm |
| Unwind diameter | φ700mm |
| Core dia. of mother roll | 3" paper core |
| Rewind diameter | φ700mm |
| Core dia. of daughter roll | 3" paper core |
| Mechanical speed | 450m/min |
| Power | 7kW |
| Power supply | 380V/50HZ |
| Weight | ≈1300kg |
| Overall dimension | L 2000×W 1200×H 1450mm |
JML-JP&FJ-500II-B
Sleeve Doctoring and Rewinding Machine
| Specification | Value |
|---|---|
| Jumbo roll width | 20–600mm |
| Unwind diameter | φ700mm |
| Core dia. of mother roll | 3" paper core |
| Rewind diameter | φ700mm |
| Core dia. of daughter roll | 3" paper core |
| Mechanical speed | 450m/min |
| Power | 7kW |
| Power supply | 380V/50HZ |
| Weight | ≈1000kg |
| Overall dimension | L 1600×W 1200×H 1200mm |
CCD deviation correction system; shaftless unwinding, hydraulic lifting of raw materials.
It is possible to simultaneously spray code and inspect the quality of both sides of the material.
JML-RW400
Sleeve Doctoring and Rewinding Machine
| Specification | Value |
|---|---|
| Jumbo roll width | 20–400mm |
| Unwind diameter | φ800mm |
| Core dia. of mother roll | 3" paper core |
| Rewind diameter | φ800mm |
| Core dia. of daughter roll | 3" paper core |
| Mechanical speed | 600m/min |
| Power | 7kW |
| Power supply | 380V/50HZ |
| Weight | ≈800kg |
| Overall dimension | L 2200×W 1240×H 1560mm |
JML-RW400LINE
Sleeve Doctoring and Rewinding Machine
| Specification | Value |
|---|---|
| Jumbo roll width | 20–300mm |
| Unwind diameter | φ800mm |
| Core dia. of mother roll | 3" paper core |
| Rewind diameter | φ800mm |
| Core dia. of daughter roll | 3" paper core |
| Mechanical speed | 450m/min |
| Power | 12kW |
| Power supply | 380V/50HZ |
| Weight | ≈1000kg |
| Overall dimension | L 3260×W 1500×H 1600mm |
LINE version: positioning and drilling of the horizontal and vertical tear lines.
JML-RW600
Rewinding Machine
| Specification | Value |
|---|---|
| Jumbo roll width | 100–600mm |
| Unwind diameter | φ600mm |
| Core dia. of mother roll | 3" paper core |
| Rewind diameter | φ600mm |
| Core dia. of daughter roll | 3" paper core |
| Mechanical speed | 450m/min |
| Power | 12kW |
| Power supply | 380V/50HZ |
| Weight | ≈1800kg |
| Overall dimension | L 2350×W 2100×H 1800mm |
JML-RW1300
Automatic Tension Inspection Machine
| Specification | Value |
|---|---|
| Film type | PET, BOP, PE, CPP, PVC reels |
| Thickness | 12–150µm |
| Max. dia. of mother roll | 800mm |
| Raw tube core | 3"/6" paper core |
| Max. width of the film | 1300mm |
| Roll width | 1400mm |
| Core dia. of daughter roll | 3"/6" paper core |
| Max. dia. of daughter roll | 800mm |
| Edge guide range | 150mm |
| Mechanical speed | 600m/min |
| Rewinding speed | 10–450m/min |
| Gross weight | ≈4800kg |
| Dimension | L 3000×W 2250×H 2450mm |
High precision and sensitivity; exceptional stability and reliability; advanced intelligence and software capabilities; flexible integration and scalability; material-specific professional optimization.
JML-400II
Rewinding Machine
| Specification | Value |
|---|---|
| Jumbo roll width | 20–400mm |
| Unwind diameter | φ600mm |
| Core dia. of mother roll | 3" paper core |
| Rewind diameter | φ600mm |
| Core dia. of daughter roll | 3" paper core |
| Mechanical speed | 450m/min |
| Power | 5kW |
| Power supply | 380V/50HZ |
| Weight | ≈700kg |
| Overall dimension | L 1820×W 1200×H 1600mm |
JML-MAX500LINE
Rewinding Machine
| Specification | Value |
|---|---|
| Jumbo roll width | 20–400mm |
| Unwind diameter | φ1000mm |
| Core dia. of mother roll | 3" paper core |
| Rewind diameter | φ1000mm |
| Core dia. of daughter roll | 3" paper core |
| Mechanical speed | 600m/min |
| Power | ≈16kW |
| Power supply | 380V/50HZ |
| Weight | ≈1700kg |
| Overall dimension | L 2250×W 1450×H 1600mm |
Applied to rewinding due to uneven end faces after slitting; positioning and drilling of the horizontal and vertical tear lines of the sleeve shrink label.
Key Features
- Siemens bus control, remote diagnosis
- The servo motor of the whole machine runs
- Positive and reverse control of equipment
- Precision tension control system
- Multi-purpose, cantilever design, easy to operate
- Equipped with automatic rewinding and layering device
- Equipped with synchronous strobe light
- Servo motor controlled tension roller (MAX500LINE)
Purpose
Check the adhesion and printing quality of various tubular shrink film labels. Surface inspection of various flexible packaging materials, electronic, optical, film, foil, pressure sensitive adhesive labels, and other roll-like materials; rewinding due to uneven slitting and rolling edges or uneven coiling tension. RW1300 is widely used in films, paper, printing and packaging, nonwoven and textiles, metal processing, and lithium batteries.
Optional Devices
Optional printing defect detection system; optional partial transverse and longitudinal tear line device.
