Cutting & Trim Winding Machines
Sheet cutting for roll materials, plus trim winding that collects slitting scrap cleanly beside the slitter.
Models

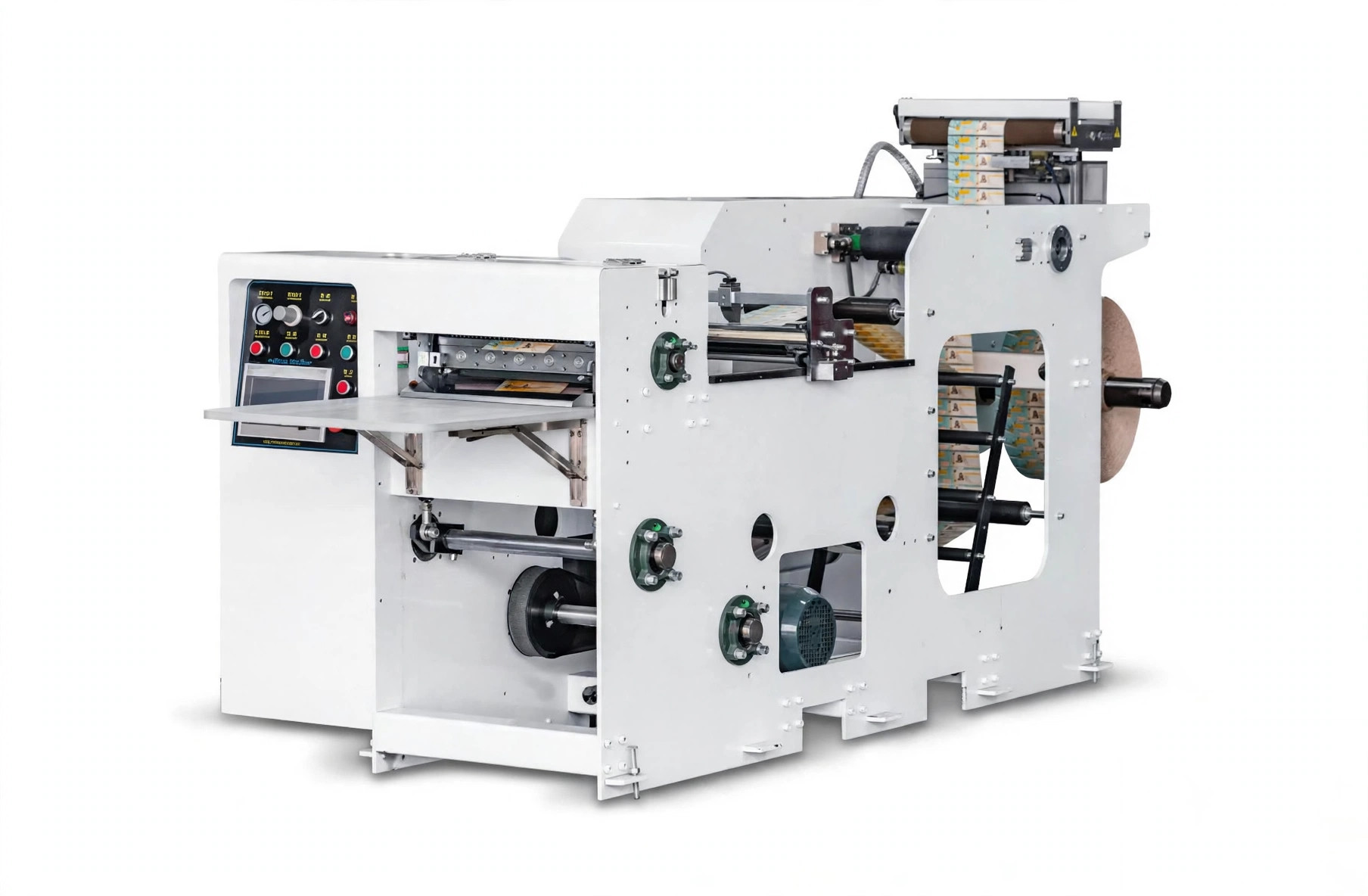

JML-GSQD350
Cutting Machine
| Specification | Value |
|---|---|
| Width of product | 20–350mm |
| Length of product | 10–500mm |
| Unwind diameter | φ700mm |
| Core dia. of mother roll | 3" paper core |
| Mechanical speed | 30–1000pcs/min |
| Power | 7kW |
| Power supply | 220V/50HZ |
| Weight | ≈1100kg |
| Overall dimension | L 2700×W 1100×H 1400mm |
JML-V400
Trim Winding Machine for Slitter
| Specification | Value |
|---|---|
| Trim width | 0–25mm |
| Rewind diameter | φ350mm |
| Core dia. of daughter roll | 3" paper core |
| Winding width | 380mm |
| Mechanical speed | 600m/min |
| Power | 1.5kW |
| Power supply | 380V/50HZ |
| Weight | ≈200kg |
| Overall dimension | L 1100×W 700×H 1400mm |
Key Features
- Complete machine PLC control, man-machine interface operation, remote diagnosis (GSQD350)
- The servo motor of the whole machine runs
- Cantilever design for easy operation (GSQD350)
- Shaftless air top mounted paper clip tube (V400)
- Surface winding method (V400)
- Swing arm tension control (V400)
Purpose
Slices of various flexible packaging materials, electronics, optics, film rolls, foil rolls, pressure sensitive adhesive labels, and other roll-like materials. V400 is for coiling of cutting scrap.
Optional Devices
Optional finished product conveyor belt; optional transverse and longitudinal pulling wire device (GSQD350); circular knife or flat knife cutting can be optionally configured (V400).
Send an Inquiry
Tell us the material, width and speed you need, and we will recommend the right model with a quotation.
